TankWorks Solution

l Floating Suction & Oil skimmer

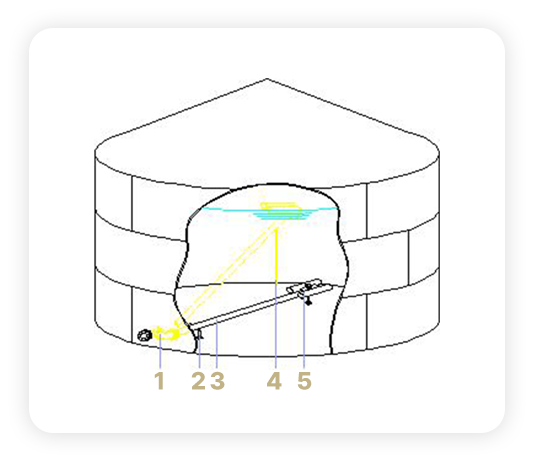

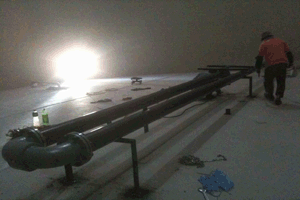

Regardless of tank sizes or orientation, TWS Floating suction is designed to suit the customers' tank and to draw cleaner product stored in the tank Suction pipe lengths, location (number) of joints and buoyancy of suction are designed to fulfill its purpose 'for the customer. It is easy to install and maintain is not necessary, Level Indicator is also available for measuring suction height Starting from 3inches up to 36inches, TWS Suction sits comfurtal1ly with a roller under Pontoon or IFR, creating perfect harmony inside the tank.

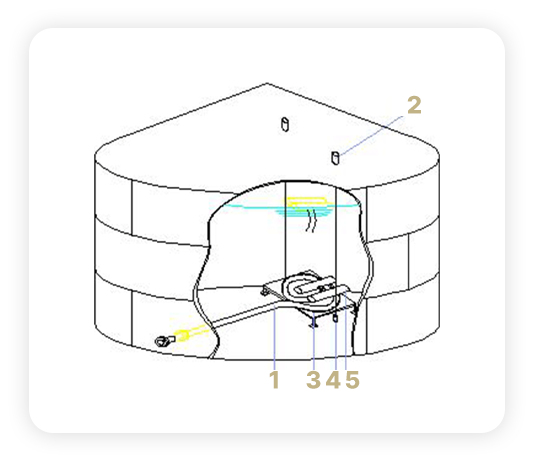

TWS Floating Oil Skimmers have been supplied to many parts of the world, satisfying skimming experience for the customers. TWS Oil Skimmers are available with pipe and joints and flexible hose skimmer. Buoyancy calculation by TWS engineers makes Oil Skimmers float in the just right height in relation with the products to skim the unwanted.

The materials of skimmer components are compatible with service products of above storage tanks.

l OIL SKIMMER : Coherent Floating Oil Skimmer

TWS Joints for Suction & Oil Skimmer.

Joints play a pivotal role in operating Suction and Oil Skimmer systems, TWS Joints are available both Swing Joint and Swivel Joint Swing joint is either Cast Iron or Cast Steel depending on customer request.

Internal & external epoxy coating is also available, Either Swing Joint or Swivel joint, TWS Suction & Oil Skimmer perform best well with long service life.

TWS joints are leak tested and have proven to work well with suction floats of buoyancy,

Flexible Oil Skimmer is recommended when tank height is longer than diameter.

Several materials are availabe to meet the products.

Multi Joint is used for relatively small size suctions.

TWS Multi Joint has been used for a long time with good performance.
