Tank Works' Internal Float Roof design and quality Can satsfy every kind of the customers' needs both for new tanks and the existing ones.

TWS high quality manufacturing ensures vapor loss prevention and excellent functionality of the peripheral rim seal.

Its material is selected to meet the service product and 100% aromatics prevention is also achieved.

TWS Basic design for IFR meets API 650 appendix Hand TWS tank experience helps TWS IFR to expand its function beyond the unexpected

challenges that tanks might reveal, irregular tank. Shell and abnormal (narrow or wide) rim space are analyzed and calculated to have

desired vapor loss reduction. Abundant field experience has transcended TWS IFR design and technologies.

All components are designed to pass through existing tank manways and IFR penetrations such as columns and pipes are provided with a well bolt and its own seal to accommodate IFR to freely travel inside the tank.

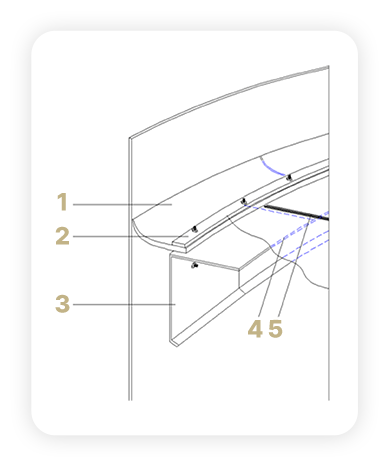

l TWS-S : Internal Floating Roof with Single Wiper Seal

It is an economic way to hav IFR system.

Wiper seal is 100% aromatic prevention and all the IFR accessories are included.

±100mm variation in the rim space is designed as a basic standard.

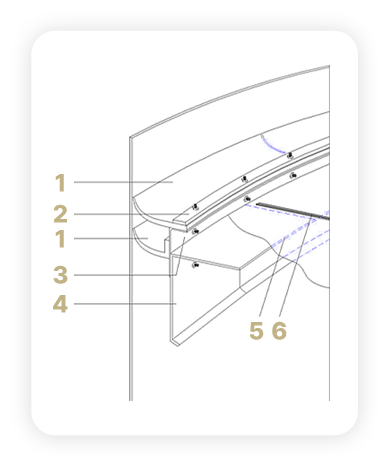

l TWS-D : Internal Floating Roof with double Wiper Seal

Sealing effect is reinforced with double wiper seals. Its material is selected in

consideration with flammability, abrasion resistance, service life expectancy,

temperatures and other compatibility factors.

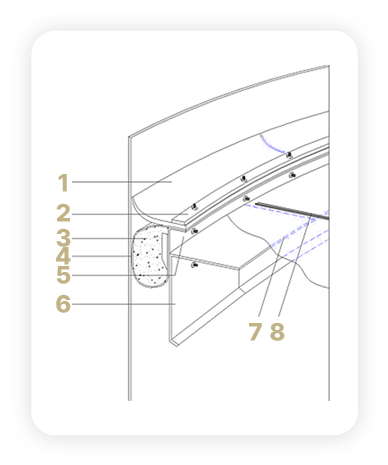

l TWS-F : Internal Floating Roof with Foam & Wiper Seal

TWS ployurethane Foam has excellent flexibility to accommodate rim space.

Foam is surrounded by Envelope compatible with many sotred products of storage tanks.

Envelope is jointed liquid tight and has strong abrasion quality to go up and down against tank shell. TWS-3 Foam seal is in contact with the liquid, eliminating vapor zone in the first place.

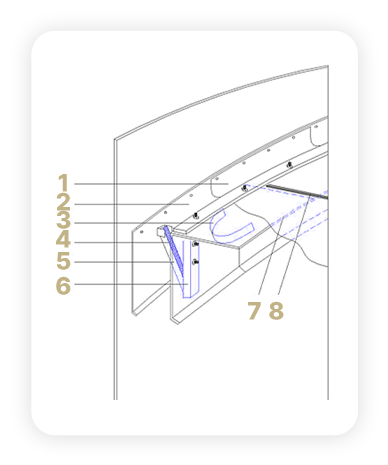

l TWS-M : Internal Floating Roof with Mechanical Seal

Shoe is overlaped along the tank shell, creating a metallic ring. The space between ring and rim of

the floation rood deck is closed by fabric called continuous seal. Continuous seal can resist all of

the stored products in above storage tank. shoe is held up against tank shell tightly and, at the

same time accom-modate rim space by TWS medchanical device.
